Topviewer Model K (TVK41)
Feature
– Weatherproof
– Simple and Hassle-free Installation
– Excellent Low Light images
(with automatic night vision mode)
– Highly versatile 30x Optical zoom
– Gravity Operated Hydraulic stabilizer offers superb image stability
– Weighted thick stainless steel housing for smooth operations in high winds and durability
– Fully automated imaging system also offers manual inputs for special lighting conditions
SPEC
Image Sensor
1/2.8” CMOS Sensor
Pixels
Approximate 2 million pixels
(HD-TVI signal system)
Lens
30x Optical Zoom
Horizontal Viewing Angle
2.3°～63.7°
Minimum Object Illumination
0.0015lx (when ICR-ON)
Waterproof
IP67(Excluding connectors)
Weight of Camera
Approx. 15kg
Camera Case Dimensions
142(W)×142(D)×483(H)mm
(Excluding connectors)
Stabilizer
Movable ±92° from the vertical direction
(variable torque value)
Front Panel
Heater Glass
Pan/Tilt
±6°
Power Supply
DC24V
Current Consumption
0.5A
Applicable Crane
Tower Crane / Crawler Crane / All Terrain Mobile Crane / Crawler Crane / Hoisting Crane / Vessel Crane / Jib Crane / Container Crane(Variable Driver Seat Type) / Transfer Crane / Unloader / Shipbuilding Crane / Overhead Bridge Crane(Variable Driver Seat Type) / Gantry Crane(Variable Driver Seat Type) /
System
Standard Component
Crane camera （TVK41）×1
Relay box （TVK41-CB）×1
Controller （TVK41-CN）×1
Monitor （optional）×1
Cable （Depend on the crane type）
Cord reel
Foot switch ×1
Camera mount accessories （Depend on the crane type）
Option
Auto reel （For Telescopic crane）
Mounting accessory（Monitor stand etc）
Component

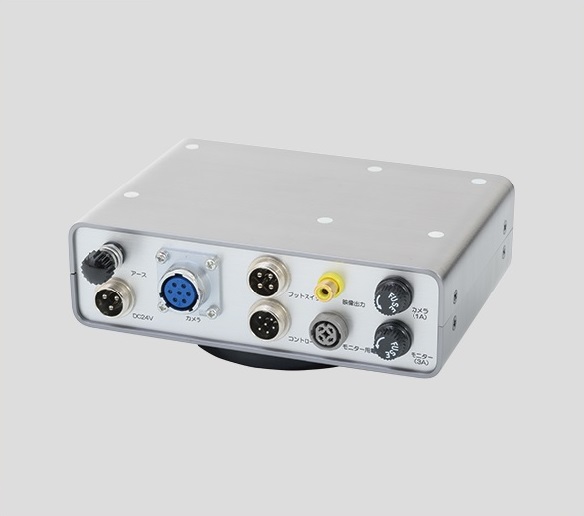

RelayBOX (TVK41-CB)
A power distribution device specifically designed for crane use.

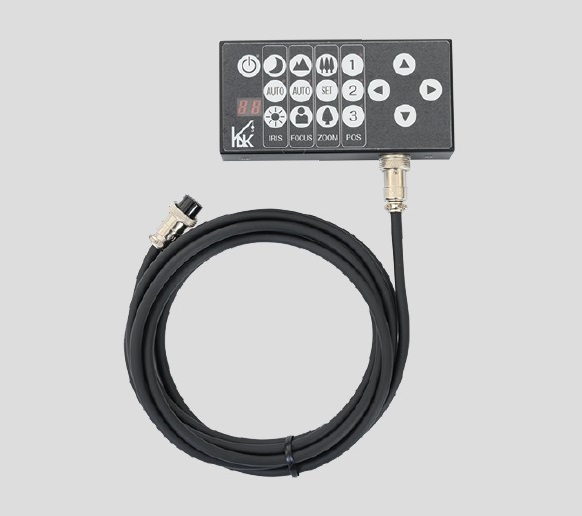

Controller (TVK41-CN)
Operating interface in the operator cabin.(Zoom, pan, tilt etc.)

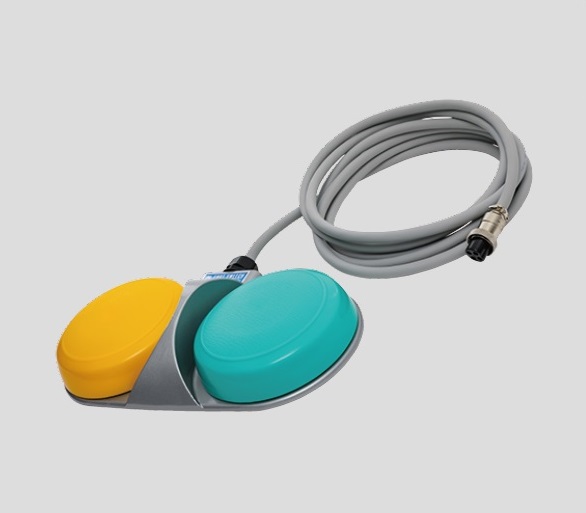

Foot Switch
Allows hands-free zoom functions during lifting operations.

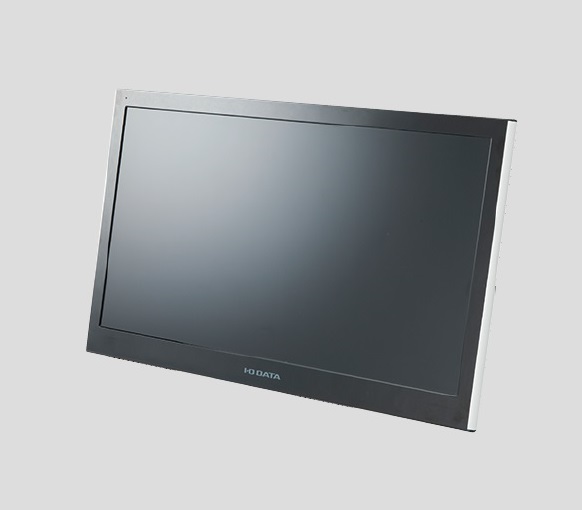

Monitor
Customisable on request.

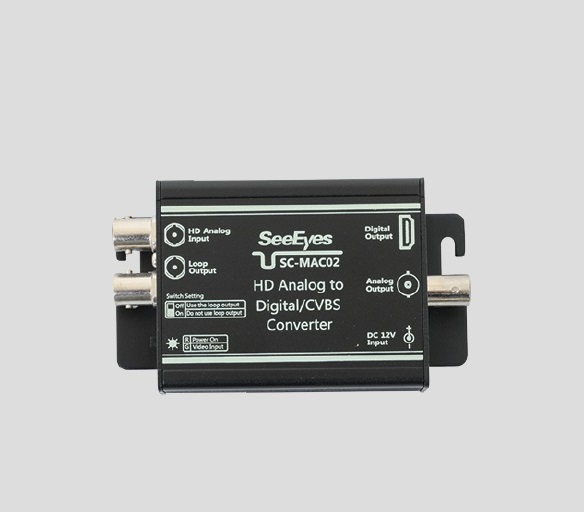

TVK-HDMI Converter
Convert image signal to achieve both clear image and long- distance transmission.

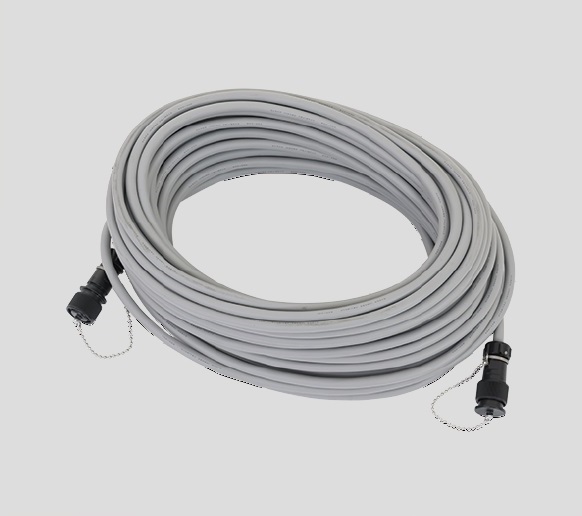

Camera Cable (Suitable length for your crane)
A custom built composite cable with quick release connectors for easy installation of crane camera.

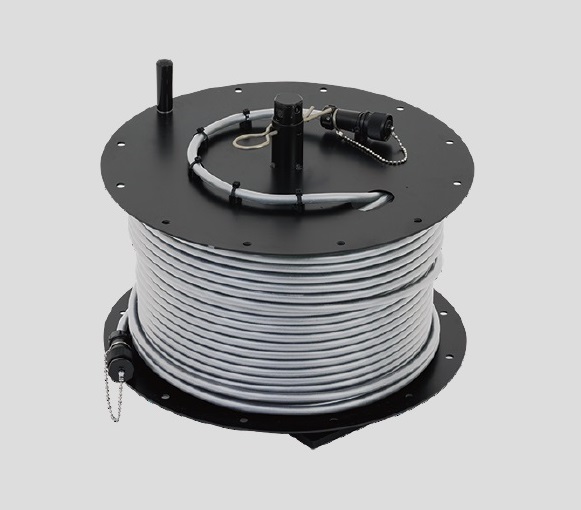

Manual Winding Cable Drum
Compared to the prior version, this newly designed cable drum is much lighter, smaller and easier for installation.
Max Capacity of 110m of cable.

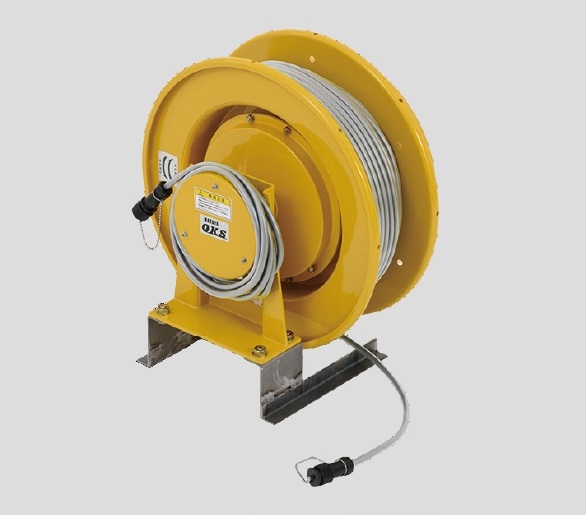

Self-Winding Cable Reel
Specially Designed for telescopic crane.
Customisable capacity for cable length ranging from 20m ~ 70m.
