Wireless Watcher WW-39 – Integrated Monitor Type (IMT)
Feature
Integrated Monitor Type makes it easy to transfer between cranes.
→ PR Video：https://e-kdk.com/en/ww/
Integrated Monitor is smaller in size, light weight and easy to handle. With its all-weather casing, it can be mounted by one person without using any tools.
With our original balancer, it helps to absorb vibration due to wind, suppresses blurriness and realizes smooth movement.
Equipped with an optical 30x zoom camera, it also has a preset zoom function.
It enables stable wireless transmission system without any video delay. (less than 1 millisecond)
SPEC
Image Sensor
1/2 Type CMOS
Output signal
HDMI
Lens
30x Optical Zoom
Angle of view
Horizontal angle of view: About 61.2 degrees (WIDE end) to about 2.3 degrees (TELE)
Power supply voltage
Camera: DC12V Battery Onboard: DC12 / 24V
Minimum illuminance
Turning on at 0.15Lx ICR to achieve 0.01Lx
Pixels
2,120,00 pixels
Mechanism
-
Operating temperature
-
Operating humidity
-
Material
SPCC material
Weight
About 7.8kg
Applicable Crane
Hammerhead Tower Crane / Rough Terrain Mobile Crane / Mini Crawler Crane / Spider Crane / Rough Terrain Mobile Crane / Container Crane(Fixed Driver Seat Type) / Overhead Bridge Crane(Fixed Driver Seat Type) / Gantry Crane(Fixed Driver Seat Type) /
System

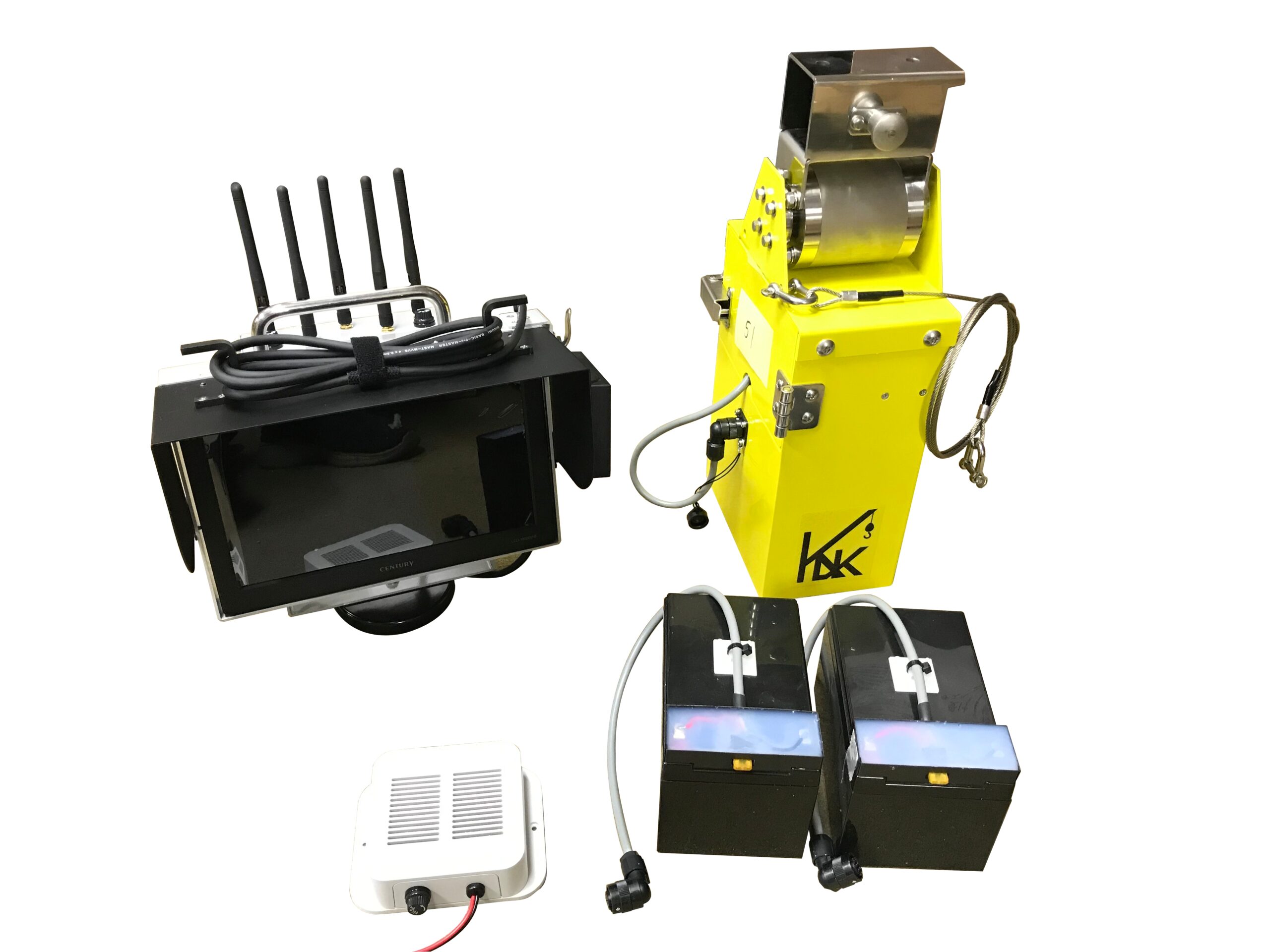

Standard Component (Integrated Monitor Type)
Top View Crane Camera x 1
Integrated Monitor consists
– Interconnection Box x 1
– Controller x 1
– Monitor x 1
Battery Accessories
– Battery x 2
– In-Car Charger x 1
Various Cables
Component

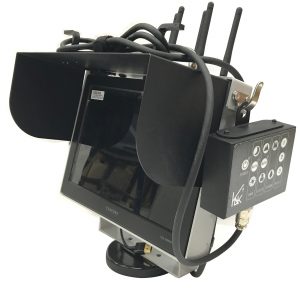

Integrated Monitor WW39-AIO
For Integrated Monitor, the Interconnection Box, Controller, Monitor and Receiving Antenna are all integrated together as one unit.

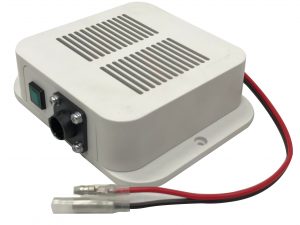

In-Car Charger WW39-BACT
In-Car Charger for charging battery. The power supply to the charger is 24 VDC.

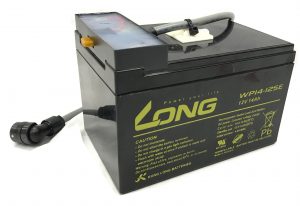

Battery WW39-BAT
Battery used only for Wireless Watchers.
